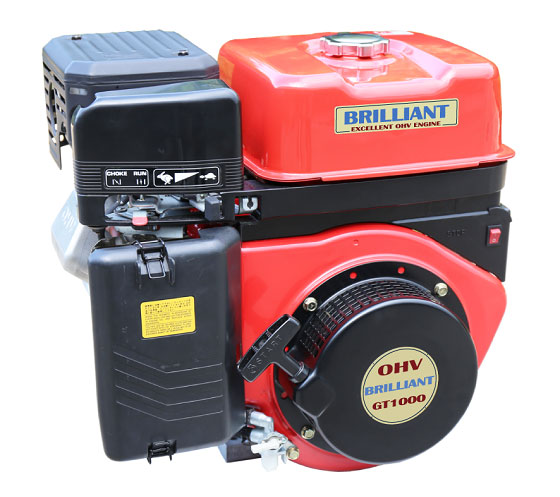

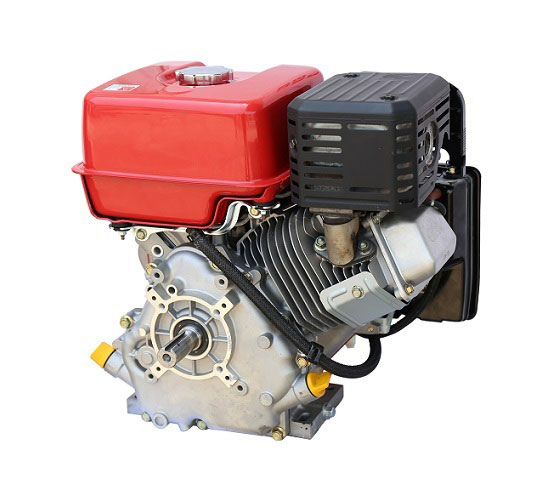

Type	GT1000P型
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-80×59
Displacement cc	296.6
Rated output kW/rpm (PS/rpm)	5.5/3600 (7.5/3600)
Max. output kW/rpm (PS/rpm)	7.3/4000 (10.0/4000)
Max. torque N.m/rpm (kgf.m/rpm)	19.3/2800 (1.97/2800)
Lubricating oil quantity L	1.0
Fuel tank capacity L	6.0
Outline dimension mm	370×434×428
Net weight kg	27.0

Optional configuration

• 〇Multiple output axis (PTO)
• 〇12V starting motor
• 〇Oil bath air filtration
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC
• 〇AC power generation coil

Download PDF file

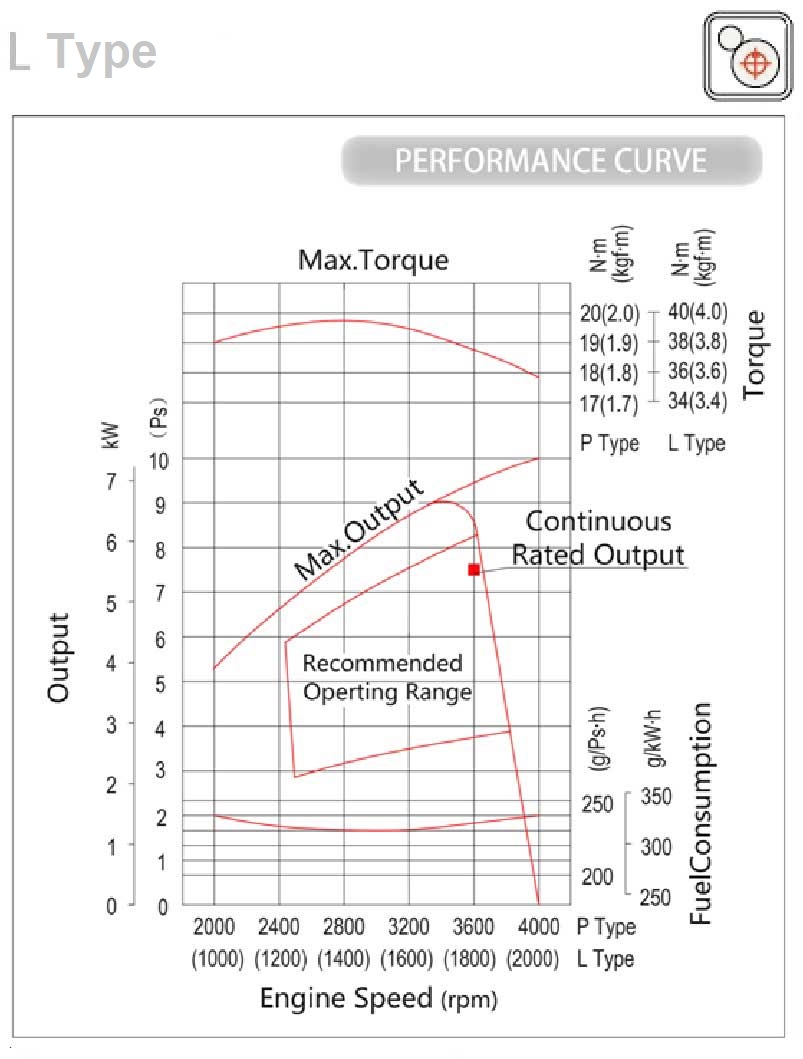

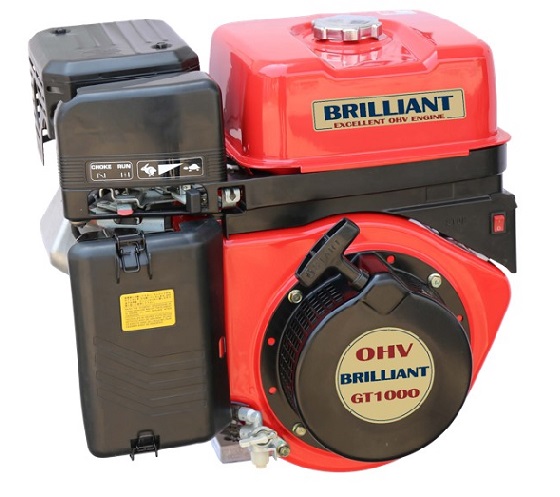

Type	GT1000L
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-80×59
Displacement cc	296.6
Rated output kW/rpm (PS/rpm)	5.5/1800 (7.5/1800)
Max. output kW/rpm (PS/rpm)	7.3/2000 (10.0/2000)
Max. torque N.m/rpm (kgf.m/rpm)	38.6/1400 (3.94/1400)
Lubricating oil quantity L	1.0
Fuel tank capacity L	6.0
Outline dimension mm	370×434×428
Net weight kg	28.0

Optional configuration

• 〇Multiple output axis (PTO)
• 〇12V starting motor
• 〇Oil bath air filtration
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC
• 〇AC power generation coil

Download PDF file
