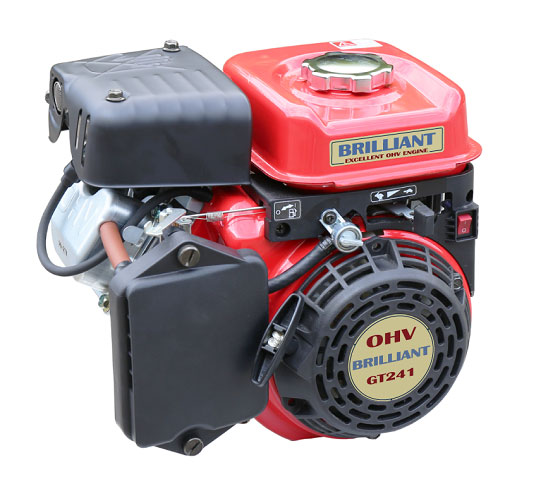

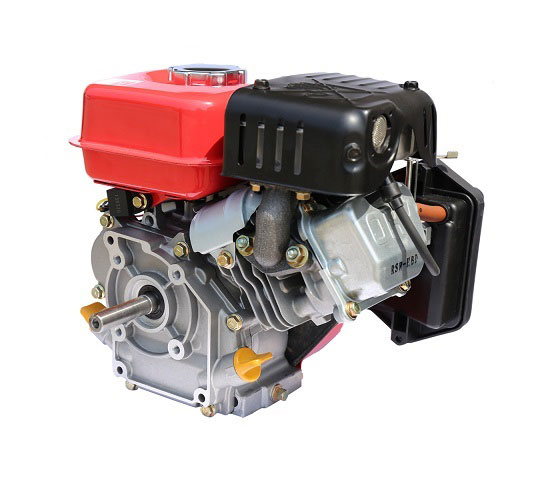

Type	GT241P
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-51.6×38
Displacement cc	79.6

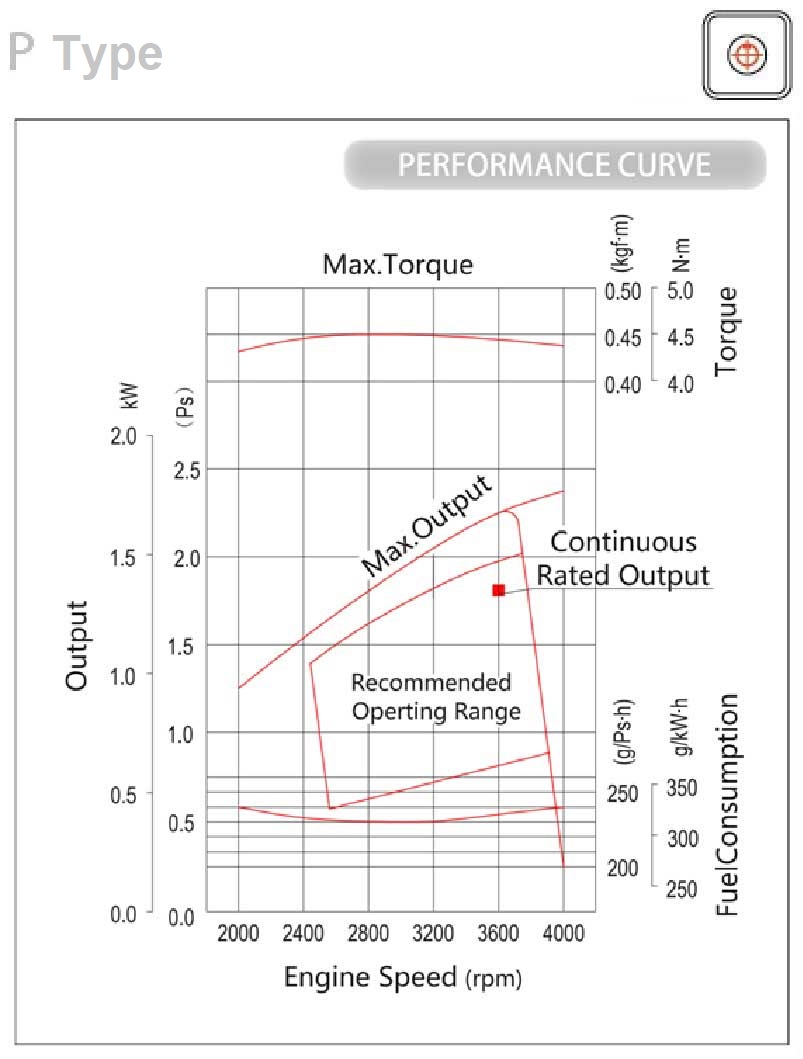

Rated output kW/rpm (PS/rpm)	1.3/3600 (1.8/3600)
Max. output kW/rpm (PS/rpm)	1.8/4000 (2.4/4000)
Max. torque N.m/rpm (kgf.m/rpm)	4.31/3000 (0.44/3000)
Lubricating oil quantity L	0.4
Fuel tank capacity L	1.5
Outline dimension mm	274×303.5×284.5
Net weight kg	9.5

Optional configuration

• 〇Multiple output axis (PTO)
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC

Download PDF file
