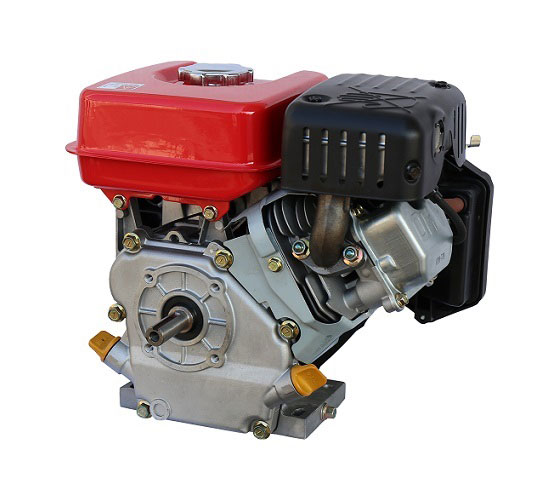

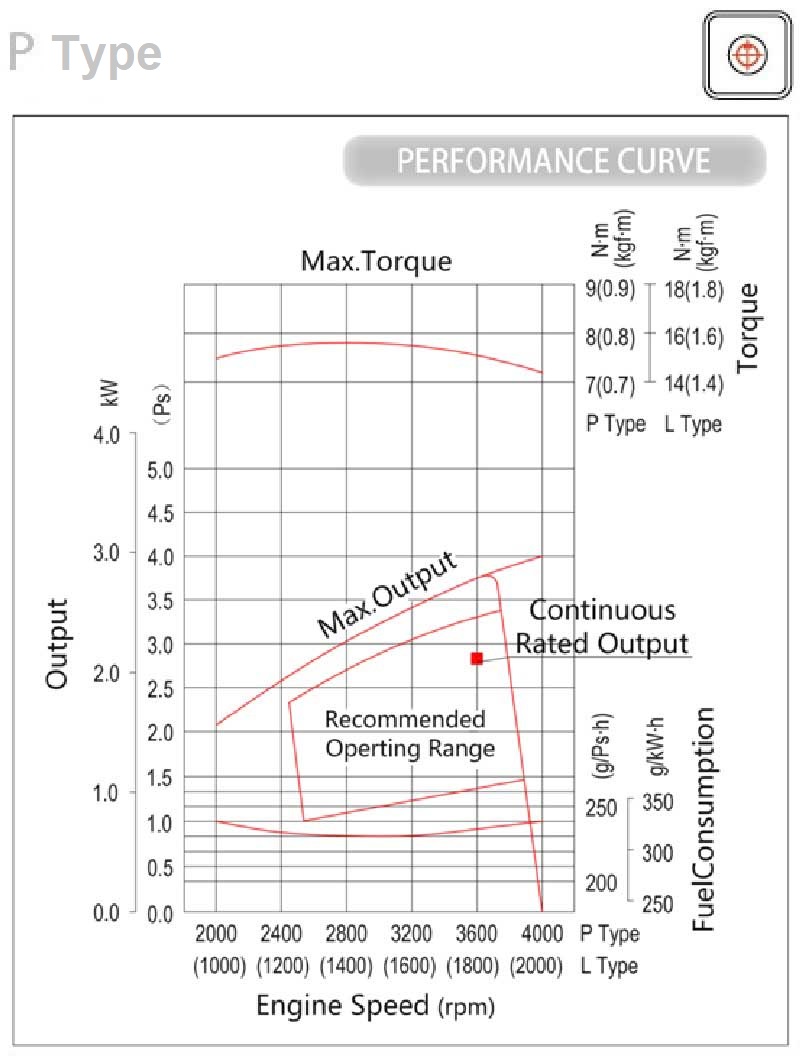

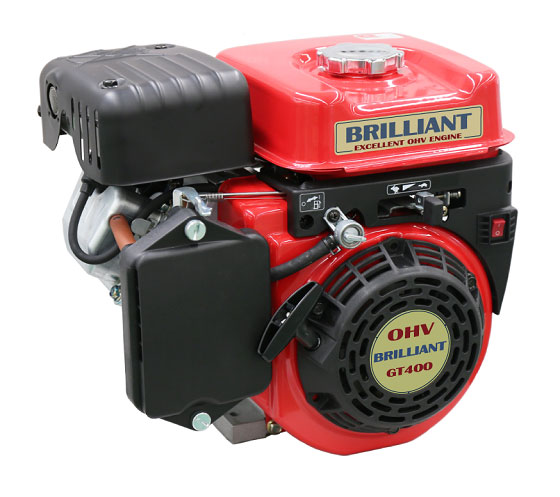

Type	GT400P
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-62×42
Displacement cc	126.8
Rated output kW/rpm (PS/rpm)	2.1/3600 (2.8/3600)
Max. output kW/rpm (PS/rpm)	2.9/4000 (4.0/4000)
Max. torque N.m/rpm (kgf.m/rpm)	7.65/2800 (0.78/2800)
Lubricating oil quantity L	0.6
Fuel tank capacity L	2.5
Outline dimension mm	297.5×340×315
Net weight kg	12.7

Optional configuration

• 〇Multiple output axis (PTO)
• 〇Multilayer filter core
• 〇Oil bath air filtration
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC

Download PDF file

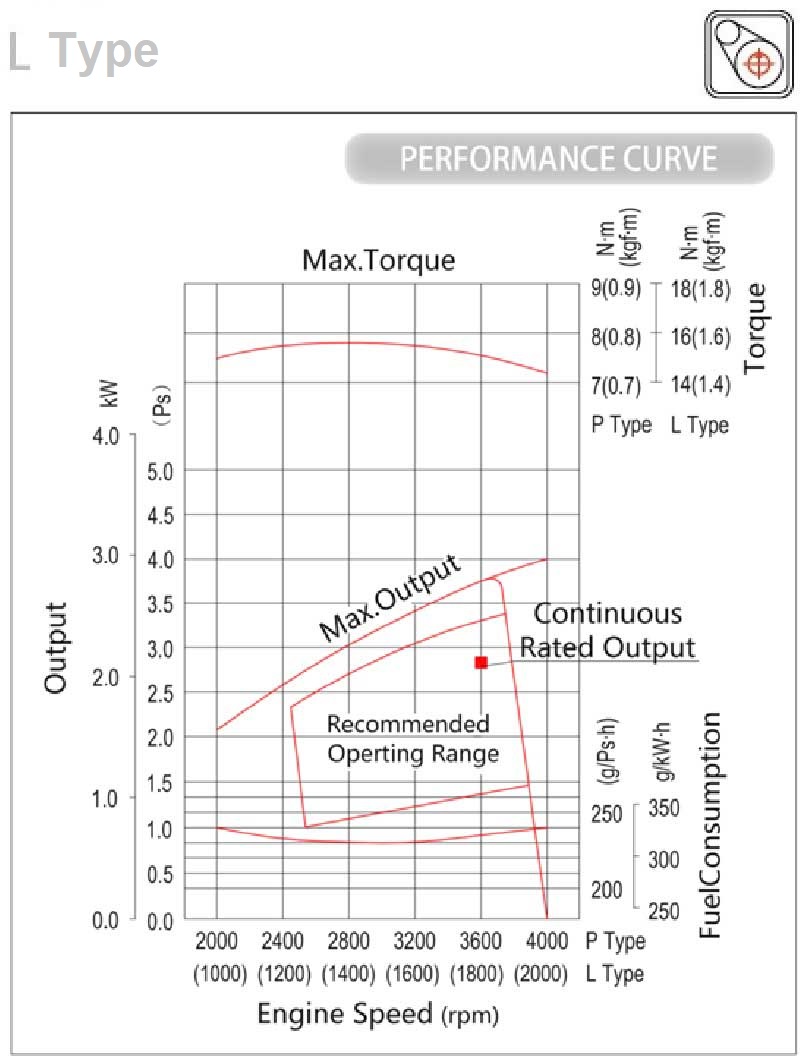

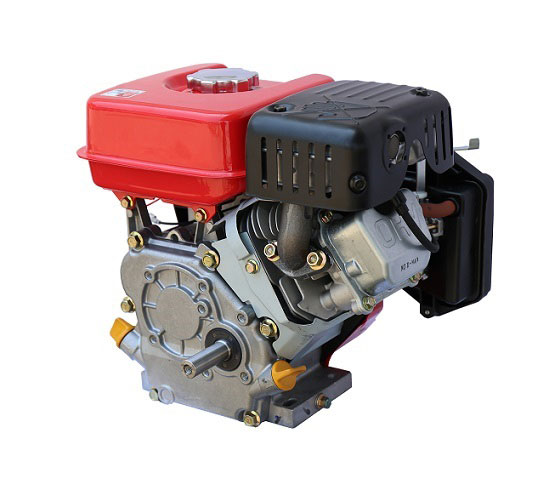

Type	GT400L
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-62×42
Displacement cc	126.8
Rated output kW/rpm (PS/rpm)	2.1/1800 (2.8/1800)
Max. output kW/rpm (PS/rpm)	2.9/2000 (4.0/2000)
Max. torque N.m/rpm (kgf.m/rpm)	15.3/1400 (1.56/1400)
Lubricating oil quantity L	0.6
Fuel tank capacity L	2.5
Outline dimension mm	297.5×340×315
Net weight kg	13.7

Optional configuration

• 〇Multiple output axis (PTO)
• 〇Multilayer filter core
• 〇Oil bath air filtration
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC

Download PDF file
