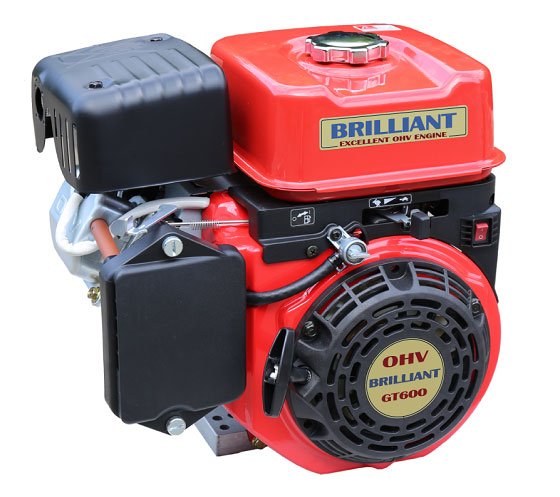

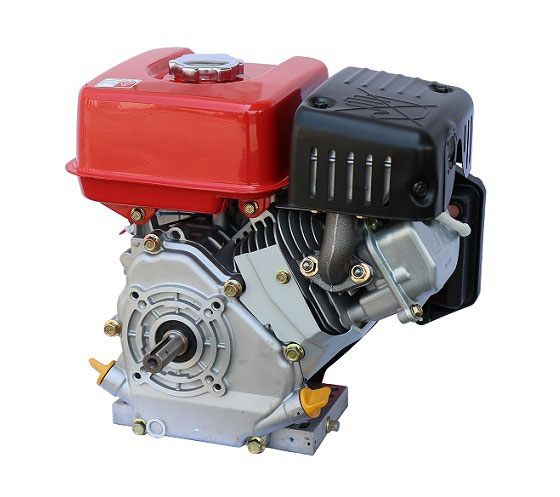

Type	GT600P
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-68×50
Displacement cc	181.6
Rated output kW/rpm (PS/rpm)	3.3/3600 (4.5/3600)
Max. output kW/rpm (PS/rpm)	4.4/4000 (6.0/4000)
Max. torque N.m/rpm (kgf.m/rpm)	1.6/2800 (1.18/2800)
Lubricating oil quantity L	0.6
Fuel tank capacity L	3.8
Outline dimension mm	309×354×348
Net weight kg	14.9

Optional configuration

• 〇Multiple output axis (PTO)
• 〇Double filter core
• 〇Oil bath air filtration
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC

Download PDF file

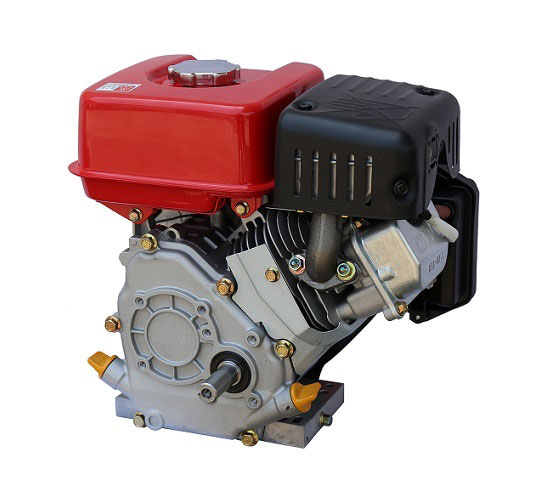

Type	GT600L
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-68×50
Displacement cc	181.6
Rated output kW/rpm (PS/rpm)	3.3/1800 (4.5/1800)
Max. output kW/rpm (PS/rpm)	4.4/2000 (6.0/2000)
Max. torque N.m/rpm (kgf.m/rpm)	23.1/1400 (2.36/1400)
Lubricating oil quantity L	0.6
Fuel tank capacity L	3.8
Outline dimension mm	309×354×348
Net weight kg	15.8

Optional configuration

• 〇Multiple output axis (PTO)
• 〇Multilayer filter core
• 〇Oil bath air filtration
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC

Download PDF file
