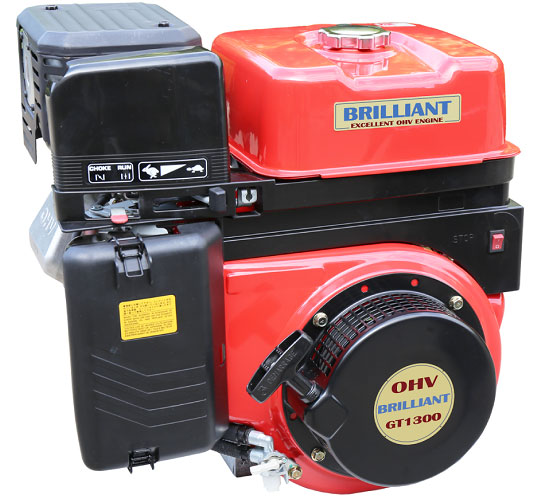

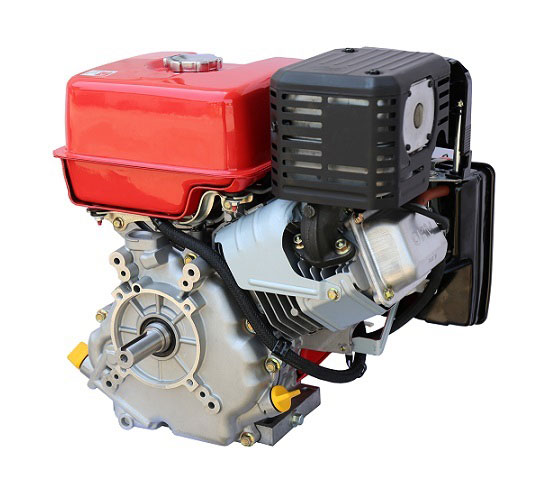

Type	GT1300P
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-89×63
Displacement cc	391.9
Rated output kW/rpm (PS/rpm)	6.6/3600 (9.0/3600)
Max. output kW/rpm (PS/rpm)	9.5/4000 (13.0/4000)
Max. torque N.m/rpm (kgf.m/rpm)	26.5/2800 (2.70/2800)
Lubricating oil quantity L	1.0
Fuel tank capacity L	6.0
Outline dimension mm	409×451×449
Net weight kg	31.0

Optional configuration

• 〇Multiple output axis (PTO)
• 〇Multilayer filter core
• 〇12V starting motor
• 〇Oil bath air filtration
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC
• 〇AC power generation coil

Download PDF file

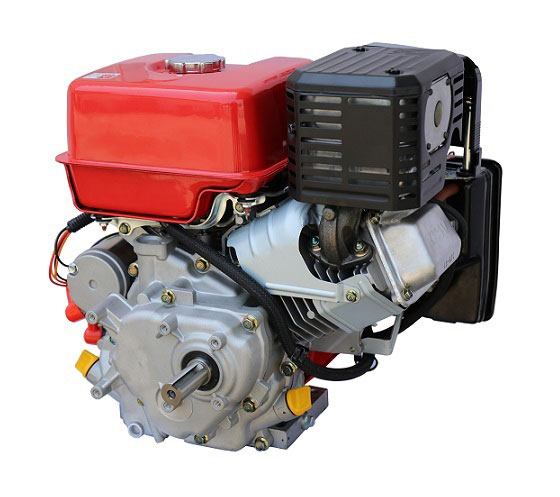

Type	GT1300L
Type	Air cooling, 4 stroke, horizontal axis, OHV
Cylinders - internal diameter × Trip mm	1-89×63
Displacement cc	391.9
Rated output kW/rpm (PS/rpm)	6.6/1800 (9.0/1800)
Max. output kW/rpm (PS/rpm)	9.5/2000 (13.0/2000)
Max. torque N.m/rpm (kgf.m/rpm)	52.9/1400 (5.40/1400)
Lubricating oil quantity L	1.0
Fuel tank capacity L	6.0
Outline dimension mm	409×451×449
Net weight kg	35.0

Optional configuration

• 〇Multiple output axis (PTO)
• 〇12V starting motor
• 〇Multilayer filter core
• 〇Oil bath air filtration
• 〇Low oil level protection device for oil
• 〇Vent steering
• 〇Spark eliminator
• 〇Remote control mode
• 〇A spark plug cap that meets the requirements of EMC
• 〇AC power generation coil

Download PDF file
